Corona Treater For ABA Blown Film Extruder

Send Inquiry

Request To Call Back

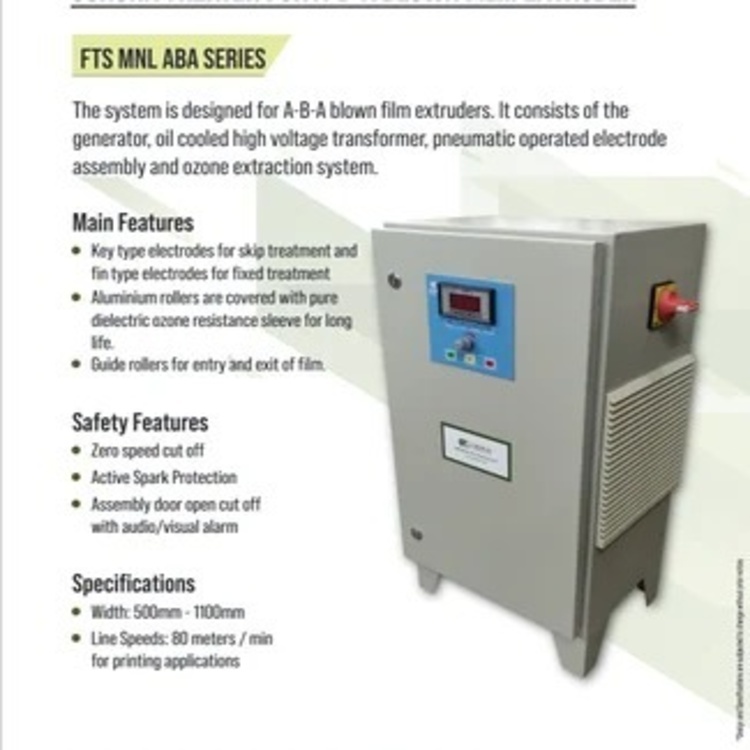

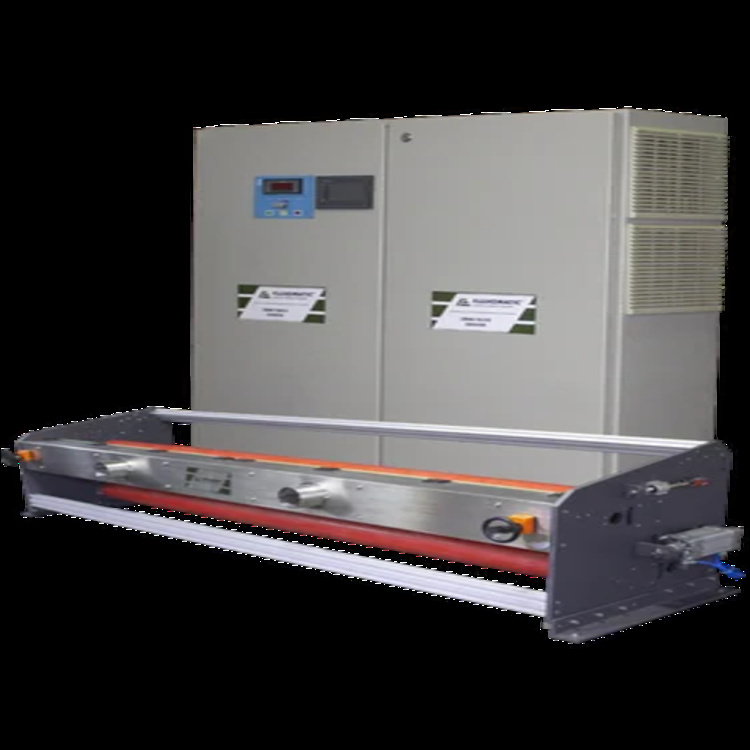

Corona Treater For ABA Blown Film Extruder

Price 13500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Corona Treater For ABA Blown Film Extruder Specification

Drive
AC Motor Drive

Cooling System
Air Cooled

Accuracy
0.1 mm

Voltage
220-240 V

Operating Temperature
0C to 60C

Frame Type
Rigid Modular Frame

Power Rating
5 kW

Plastic Processed
LLDPE, LDPE, HDPE films

Machine Type
Surface Treatment Equipment

Lubricating System
Grease Lubricated Bearings

Features
High efficiency, Rust proof body, Compact design

Frequency
50/60 Hz

Model No
CT-ABA150

Motor Power
0.37 kW

Noise Level
<70 dB

Production Capacity
Up to 150 m/min

Connectivity Options
Ethernet, RS485 Remote Interface

Control System
Digital Touch Panel

Product Type
Corona Treater for ABA Blown Film Extruder

Technology
Corona Discharge

Power Source
Electric

Operating Type
Automatic

Power
5 kW

Pressure
Standard Atmospheric

Surface Treatment
Powder Coated

Dimension (L*W*H)
1200 mm x 500 mm x 900 mm

Weight (kg)
175

Color
Blue & Silver

Usage & Applications
Improving surface tension of plastic films for better printability and lamination

Mounting Type
Floor Standing With Adjustable Feet

Compliance
CE Marked, ISO 9001:2015 Certified

Working Speed
10-150 m/min

Cooling Fan Type
Low Noise Industrial Fan

Electrode Type
Ceramic Electrode Bar

Response Time
<10 ms

Generator Efficiency
>90%

Screen Language
English

Display
7-Inch LCD Touch Screen

Maintenance
Low-Requirement, Tool-Free Access

Packaging Type
Standard Export Wooden Box

Roller Material
Anodized Aluminium Covered with Silicone Sleeve

Safety Features
Emergency Stop, Overload Protection, Interlock System

Maximum Web Width
1500 mm

Edge Sensor
Integrated Automatic Edge Sensor

Input Current
22 A

Corona Treater For ABA Blown Film Extruder Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-10 Days

About Corona Treater For ABA Blown Film Extruder

Experience unprecedented value with our renowned Corona Treater for ABA Blown Film Extruder, Model CT-ABA150. Engineered for grand efficiency, this advanced machine features a robust anodized aluminium roller with a premium silicone sleeve, ceramic electrode bar, and high-performance generator (>90% efficiency). Benefit from integrated automatic edge sensors, a responsive 7-inch LCD touch panel, and tool-free access for low-maintenance operation. Ensuring operator safety with emergency stop and overload protection, this CE-marked, ISO 9001:2015-certified system is your trusted solution for elevating film printability and lamination. Shop now for enhanced productivity and performance!

Specialized Surface Treatment - Unlock Superior Printing Results

The Corona Treater for ABA Blown Film Extruders is ideal for enhancing the surface tension of LLDPE, LDPE, and HDPE films, ensuring optimal ink adhesion for printing and laminate applications. Widely used in packaging, labeling, and flexible film industries, this equipment grants a grand advantage by offering high-speed production (up to 150 m/min) with accuracy, safety features, and reliable performance, all within a compact, rust-proof, powder-coated frame.

Sample Policy & Certifications - Seamless Access and Quality Assurance

Sample availability is provided on request, with a nominal outlay covering the rate, standard export wooden box packing, and prompt dispatch. Our Corona Treater is backed by prestigious certifications, including CE marking and ISO 9001:2015 compliance, ensuring utmost safety and quality in every unit supplied. Shop with confidence knowing you'll receive certified, thoroughly inspected equipment that meets global industrial standards.

FAQ's of Corona Treater For ABA Blown Film Extruder:

Q: How does the Corona Treater improve the printability of plastic films?

A: The Corona Treater utilizes advanced corona discharge technology to modify the surface tension of LLDPE, LDPE, and HDPE films, allowing inks and lamination adhesives to adhere more effectively. This process ensures high-quality printing and finishing on treated films.

Q: What safety features are integrated into this Corona Treater model?

A: This model includes a suite of safety mechanisms such as emergency stop, overload protection, interlock system, and a rigid modular frame for operational safety and stability.

Q: Where is this Corona Treater typically used?

A: The Corona Treater is widely used in film packaging, printing, and flexible film lamination industries. It is especially valuable in facilities requiring consistent, high-quality surface treatment for plastic films.

Q: What is the process for ordering and receiving a sample unit?

A: To access a sample, customers need to place a request, cover the nominal outlay for the sample rate, and the product will be packed in a standard export wooden box for safe dispatch.

Q: How is maintenance handled with this machine?

A: Maintenance is straightforward, as the unit is designed for low maintenance with tool-free access and features like grease-lubricated bearings and a low-noise cooling system, minimizing downtime and operational hassles.

Q: What certifications does the Corona Treater hold?

A: Our Corona Treater is CE Marked and ISO 9001:2015 certified, ensuring high standards of safety, quality, and compliance with global industrial requirements.
